Profiler

On this page

Remote Desktop Manager has a built-in profiler to diagnose connectivity issues with a data source.

Displaying the profiler window might slow down the operations on the data source. Proceed with care.

To diagnose startup issues, you can enable the profiler from the command line as described in Command line arguments.

Procedure

  1. Once the Profiler is opened, refresh the data source.

Holding the Ctrl key while performing the refresh should force a full reload of the data source, recreating the offline cache.

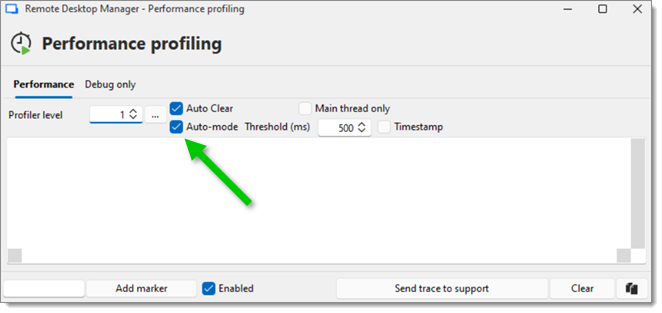

Performance Profiling
Performance Profiling

  1. The Profiler data will appear in the Performance Profiling window.
    Refresh Data Source
    Refresh Data Source
  2. Click on Send Trace to Support to send the Profiler data logs to our support team. You can add a Marker when running multiple tests to separate them.
  1. Select Help - Profiler.
    Help – Profiler
    Help – Profiler
  2. Move the window to the side to display the Remote Desktop Manager main window and refresh the data source by using the refresh button or by using File – Refresh.

Holding the Ctrl key while performing the refresh will force a full reload of the data source, thereby ignoring the cache.

Perfromance profiling
Perfromance profiling

  1. The Profiler data will appear in the Performance Profiler window.
    Performance profiling result
    Performance profiling result
  2. Click on Send Trace to Support to send the Profiler data logs to our support team. You can add a Marker when running multiple tests to separate them.
    Send trace to support
    Send trace to support

Debug only

To learn more about the Debug only tab, please see Debugging.

Debug only
Debug only
