Entry types

On this page

Settings

Go to File – Settings – Entry Types to control settings applied to Session entries.

OPTION	DESCRIPTION
Display	Determinate the preferred display for the session. Select between: Embedded (tabbed) Undocked You can then choose the preferred monitor to display on: Primary monitor: This is the monitor that is marked as main display in Windows Secondary monitor: The other non-primary monitor, osbolete, use Monitor 1, 2, 3 or 4 instead Current monitor: The monitor that Remote Desktop Manager is running in Configured: See Systems Options Default: Will not move the application, it will be Windows default mode Monitor 1: Monitor 1 is primary Monitor 2: Monitor 2 is primary Monitor 3: Monitor 3 is primary Monitor 4: Monitor 4 is primary Monitor 5: Monitor 5 is primary Monitor 6: Monitor 6 is primary Prompt on connection
Keep tab page opened on disconnect	Keep the tab of a session open even after it disconnects.
Connect using dashboard on double click	Specify whether a double-click action in the dashboard connects to the session.
Wake on LAN broadcast IP address	The broadcast IP address used for the Wake-on-LAN feature.
Batch open wait interval	Defines the time (in seconds) between opening multiple entries in a batch.
Color border thickness	Determines the thickness (in pixels) of the border color around entries.
Auto typing wait time	Sets the wait time (in seconds) before executing an auto-typing action.
Collapse Navigation Pane on open with Ctrl+Shift	When enabled, collapses the navigation pane when opening a session with the specified shortcut.
Collapse Navigation Pane on open embedded	Collapses the navigation pane when an embedded session is opened.
Minimize on open session (external)	Minimizes the application when an external session is opened.
Reconnect on double click	Automatically reconnects a disconnected session on double-click in the Navigation pane

OPTION	DESCRIPTION
Opened entry action	Determines the default action when an entry is opened.
Session entry action	Specifies the default action for session entries.
Information entry action	Sets the default behavior for information entries.
Contact entry action	Configures the default action for contact entries.
Credential entry action	Defines the default action for credential entries.
Document entry action	Sets the action for document entries.
Folder entry action	Specifies the action for folder entries.
Synchronizer entry action	Defines the behavior for synchronizer entries.
VPN entry action	Sets the default action for VPN entries.
Macro entry action	Determines the action for macro entries.
Default close all action	Specifies the default behavior for closing all sessions

OPTION	DESCRIPTION
Rename method	Determines how the name of a duplicated entry is modified.
Suffix	The text appended to the name of a duplicated entry.

Go to File – Settings – Types to control settings applied to Session entries.

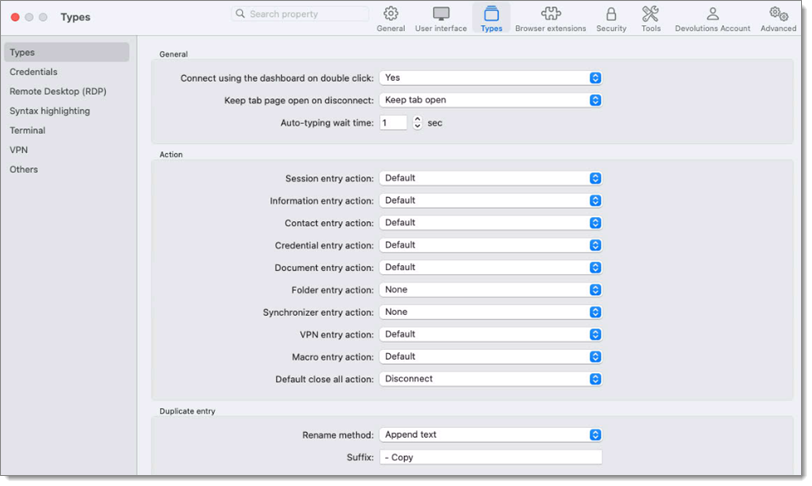

Settings - Types

OPTION	DESCRIPTION
Default close all action	Select the Default action for the Close all button when multiple tabs are open at the same time in the dashboard: Disconnect (disconnect all opened tab connected session) Log off (Log off all opened tab session) Default (Close all opened tab sessions)

OPTION	DESCRIPTION
Global Availability	Define the default setting of the Global Availability for the user vault Search between: Available Unavailable

OPTION	DESCRIPTION
Screen sizing mode	You can choose a preferred screen sizing mode for your RDP session between: Scrollbar Smart reconnect Smart sizing Server resolution None
Display	Determinate the preferred display for the session. Select between: Default External Embedded (tabbed) Undocked You can then choose the preferred monitor to display on: Primary monitor: This is the monitor that is marked as main display in Windows Secondary monitor: The other non-primary monitor, osbolete, use Monitor 1, 2, 3 or 4 instead Current monitor: The monitor that Remote Desktop Manager is running in Configured: See Systems Options Default: Will not move the application, it will be Windows default mode Monitor 1: Monitor 1 is primary Monitor 2: Monitor 2 is primary Monitor 3: Monitor 3 is primary Monitor 4: Monitor 4 is primary Monitor 5: Monitor 5 is primary Monitor 6: Monitor 6 is primary
Activate sandboxing	The sandboxing isolate the RDP connection in another process. This is more stable and more reliable since it is an independent application embedded in RDP. This means that RDP can more easily recover from a a disconnection or a fatal error.
Use OpenGL	If using OpenGL on your Mac activate this option to enhance your screen performance.
RDP Engine	Select between: Default V2 V3 V4
Gateway Transport	Select between: Auto Http RPC

OPTION	DESCRIPTION
Screen display	When using ARD session you will be prompt to know which screen display to use. By default it will take the primary screen.
