# Configuration

There are two methods for configuring the failed request tracing:

* [Using the appcmd.exe command](https://docs.devolutions.net/server/kb/troubleshooting-articles/failed-request-tracing-with-iis/configure-failed-request-tracing/#using-the-appcmdexe-command)
* [Via the IISManager app](https://docs.devolutions.net/server/kb/troubleshooting-articles/failed-request-tracing-with-iis/configure-failed-request-tracing/#via-the-iismanager-app)

### Using the [appcmd.exe command](https://docs.microsoft.com/en-us/iis/get-started/getting-started-with-iis/getting-started-with-appcmdexe)

|                                                                                                                                                                                             |
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| appcmd.exe set config -section:system.applicationHost/sites "/\[name='Default Web Site'].traceFailedRequestsLogging.enabled:True" /commit:apphost                                           |
| appcmd.exe set config -section:system.applicationHost/sites "/\[name='Default Web Site'].traceFailedRequestsLogging.maxLogFiles:10" /commit:apphost                                         |
| appcmd.exe set config -section:system.applicationHost/sites "/\[name='Default Web Site'].traceFailedRequestsLogging.directory:%SystemDrive%\inetpub\logs\FailedReqLogFiles" /commit:apphost |
| appcmd.exe set config "Default Web Site" -section:system.webServer/tracing/traceFailedRequests /+"\[path='\*']"                                                                             |
| appcmd.exe set config "Default Web Site" -section:system.webServer/tracing/traceFailedRequests /+"\[path='\*'].traceAreas.\[provider='WWW Server',areas='Rewrite',verbosity='Verbose']"     |
| appcmd.exe set config "Default Web Site" -section:system.webServer/tracing/traceFailedRequests /\[path='\*'].failureDefinitions.statusCodes:"400-599"                                       |

{% hint style="info" %}
Note that the steps above only apply to IIS 7.0 or later, and that the commands work best when cmd.exe is run as an administrator.
{% endhint %}

### Via the IISManager app

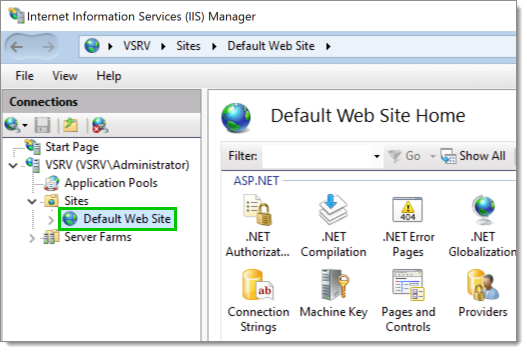

1. In IIS Manager, expand the root node, expand ***Sites***, then select ***Default Web Site***.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4006_2024_1.png" alt=""><figcaption></figcaption></figure>

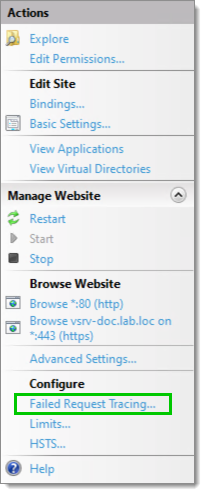

2. In the ***Actions*** pane on the right, select ***Failed Request Tracing***.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4007_2024_1.png" alt=""><figcaption></figcaption></figure>

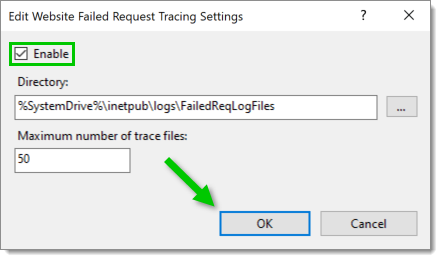

3. Check the ***Enable*** box (mandatory). The ***Directory*** target and ***Maximum number of trace files*** options can be customized (optional). Click ***OK*** when done.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4008_2024_1.png" alt=""><figcaption></figcaption></figure>

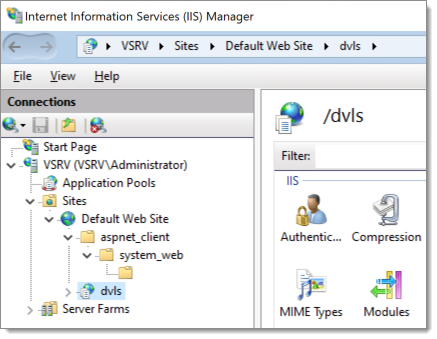

4. Expand ***Default Web Site***, then select the website to be traced.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4009_2024_1.png" alt=""><figcaption></figcaption></figure>

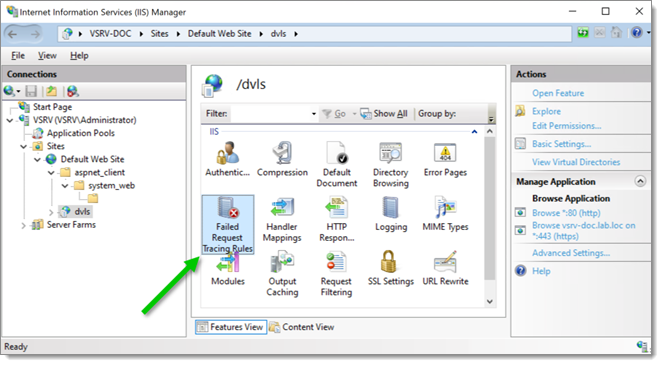

5. Double-click on the ***Failed Request Tracing Rules*** icon of the selected website.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4010_2024_1.png" alt=""><figcaption></figcaption></figure>

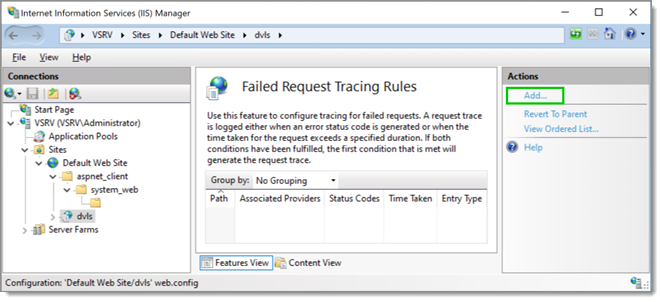

6. In the ***Actions*** pane on the right, click on ***Add*** to add a new rule.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4011_2024_1.png" alt=""><figcaption></figcaption></figure>

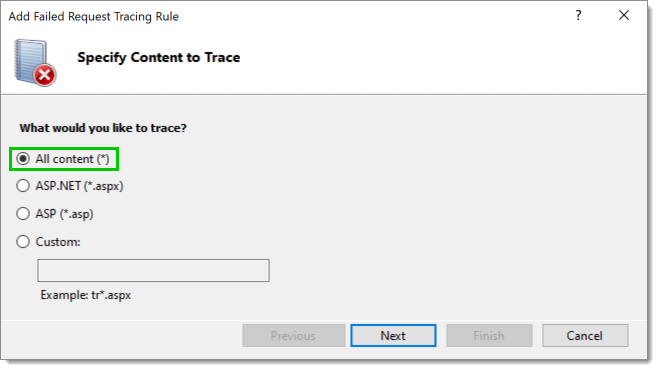

7. Select ***All content (*****)**\*, then click ***Next***.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4012_2024_1.png" alt=""><figcaption></figcaption></figure>
8. Check the ***Status Code(s)*** box, then enter the type of the status code to be traced. In this case, the ***Status code(s)*** is set to monitor everything from codes 400 to 599. Click ***Next*** when done.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4013_2024_1.png" alt=""><figcaption></figcaption></figure>

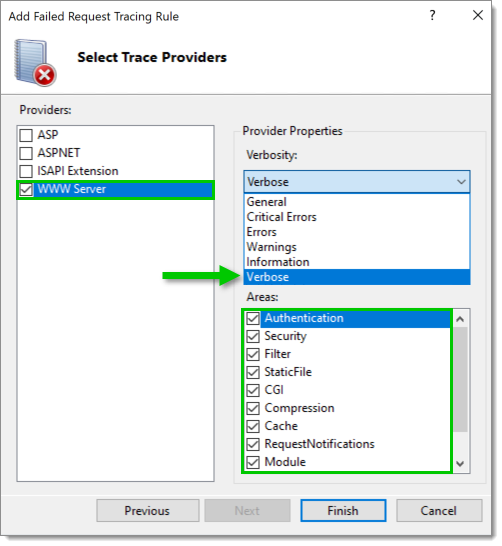

9. Select the providers of the tracing. For each provider, set the ***Verbosity*** to ***Verbose*** and select all ***Areas***. In this case, the ***WWW Server*** provider was selected.

   <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4014_2024_1.png" alt=""><figcaption></figcaption></figure>

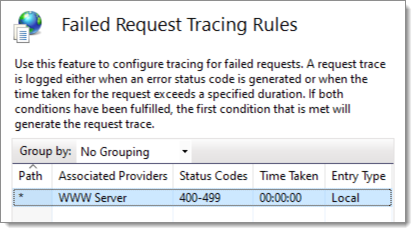

10. Click ***Finish***. The tracing rule is now defined.

    <figure><img src="https://cdnweb.devolutions.net/docs/DVLS4015_2024_1.png" alt=""><figcaption></figcaption></figure>


---
