Dashboard customization
Widgets can be customized in Remote Desktop Manager to let users build dashboards while giving administrators the ability to define and enforce a standard widget configuration.
Widgets are available in Devolutions Cloud, Devolutions Server, and Devolutions Password Manager.
Customize dashboard layout

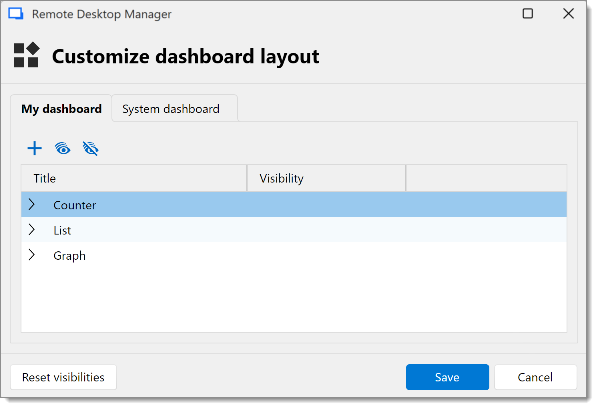

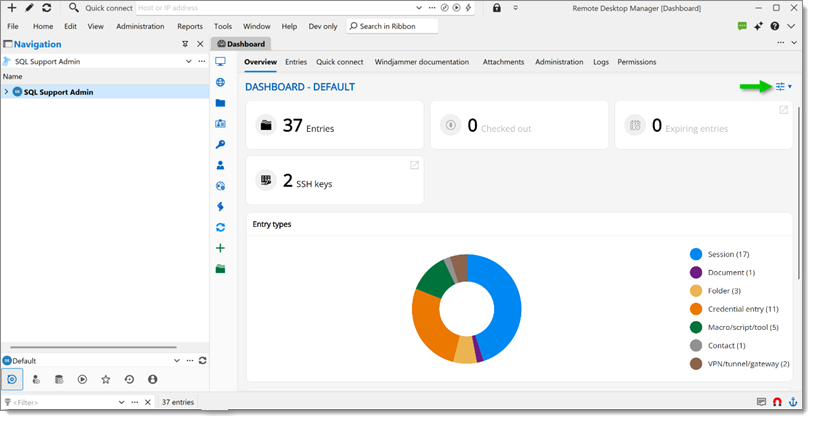

Click Customize dashboard in Remote Desktop Manager to open the Customize dashboard layout window.
My dashboard: Dashboard personalized by each user.
System dashboard: Preset dashboard set by an administrator for consistent usage across the organization.
The Widgets window lets you configure which widgets are displayed and when. Widgets are grouped by type (Counter, List, and Graph), and each widget has a Visibility option you can set (such as Always, Never, or If not empty).
Use the buttons to Add widget, Show all, Hide all, or Reset visibilities then click Save to apply your changes or Cancel to discard them.

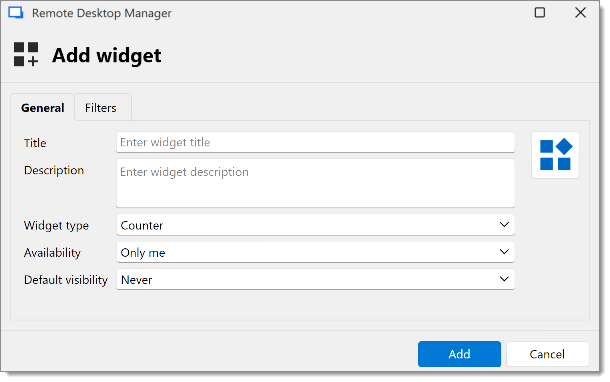

Add widget
The Add widget window lets you create a new widget.
General tab
Title
Displays the widget’s name on the dashboard.
Description
Enters the widget description.
Widget type
Selects Counter (single metric) or List (detailed results).
Availability
Defines where the widget is available: Only me (personal) or Everyone (shared to all users).
Default visibility
Determines the widget’s default display behavior: Always, Never, or If not empty.
Filters tab
Search mode
Specifies how filtering is applied (Default or Regex).
Entry name/regex expression
Matches entries by name or by Regex expression.
Tags
Matches entries by one or more tags.
Status
Filters based on entry status.
Dashboard configuration mode
Use System settings to determine whether users can customize their dashboard or whether a preset layout is applied (optionally enforced).

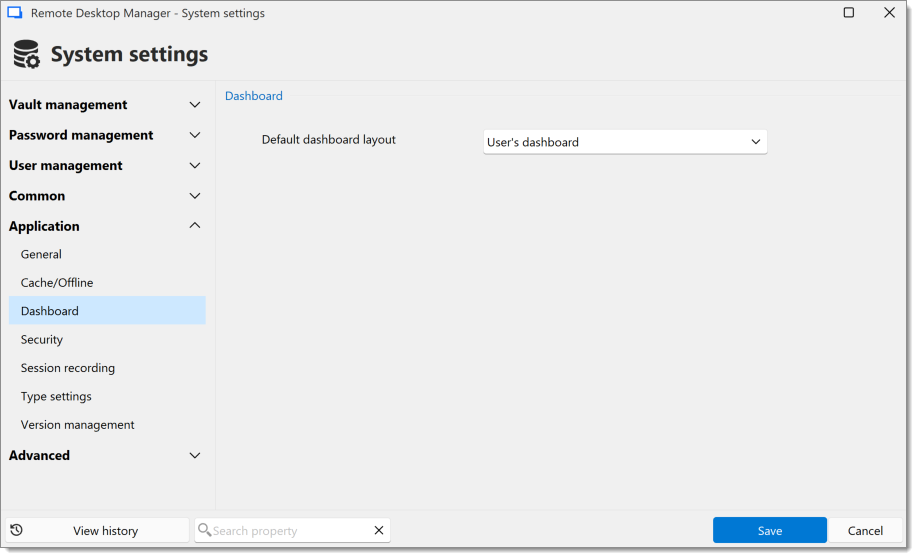

Navigate to the ribbon of Remote Desktop Manager and click Administration – System settings – Application – Dashboard.
In Default dashboard layout, select one of the following:
User’s dashboard: Displays the user’s dashboard.
System dashboard: Applies the preset dashboard by default, while still allowing users to customize their dashboard.
Disallow selecting a different dashboard: This option is only enabled when selecting System dashboard. It forces the preset dashboard and prevents user customization.
Widgets can be customized in Remote Desktop Manager to let users build dashboards while giving administrators the ability to define and enforce a standard widget configuration.
Widgets are available in Devolutions Cloud, Devolutions Server, and Devolutions Password Manager.

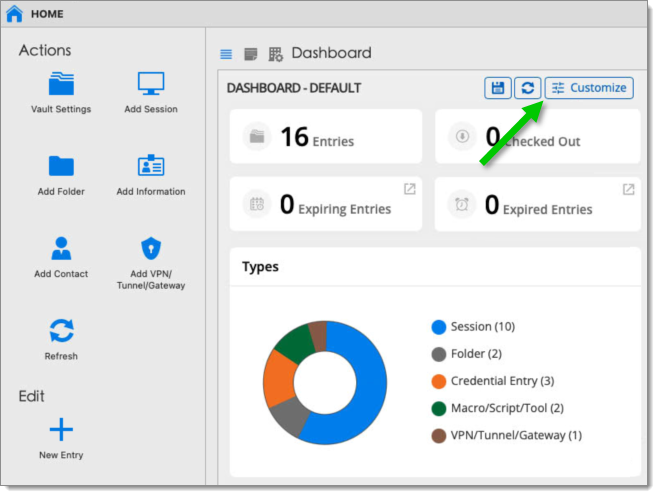

Customize dashboard
User: Dashboard personalized by each user.
System: Preset dashboard set by an administrator for consistent usage across the organization.

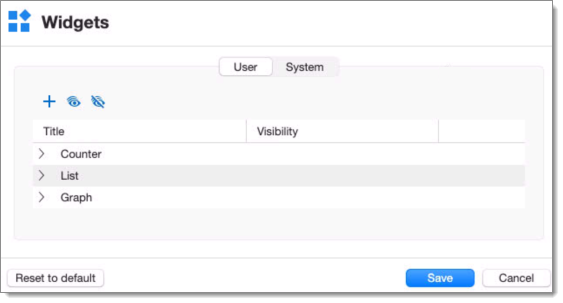

The Widgets window lets you configure which widgets are displayed and when. Widgets are grouped by type (Counter, List, and Graph), and each widget has a Visibility option you can set (such as Always, Never, or If not empty).
Use the buttons to Add widget, Show all, Hide all, or Reset to default then click Save to apply your changes or Cancel to discard them.

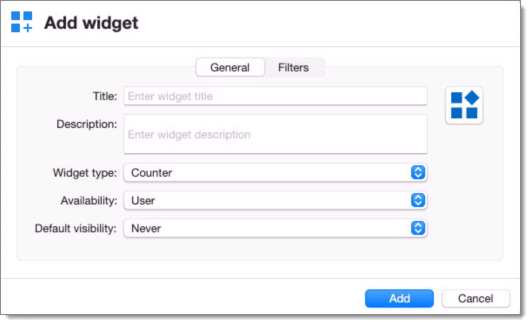

Add widget
The Add widget window lets you create a new widget.
General tab
Title
Displays the widget’s name on the dashboard.
Description
Enters the widget description.
Widget type
Select Counter (single metric) or List (detailed results).
Availability
Defines where the widget is available: User (personal) or Workspace (shared to all users).
Default visibility
Determines the widget’s default display behavior: Always, Never, or If not empty.
Filters tab
Search mode
Specifies how filtering is applied (Default or Regex).
Entry name/regex expression
Matches entries by name or by Regex expression.
Tags
Matches entries by one or more tags.
Status
Filters based on entry status.
