Configure certificate x.509 credential entry type
The Certificate (X.509) credential entry type facilitates RDP Smart Card authentication, and stores the full X.509 certificate (public and private portion) for insertion into an RDP virtual Smart card.
Some organizations use X.509 certificates as as alternative to authenticating with user IDs and passwords. X.509 certificates leverage public-private key cryptography, and are widely seen as an enhanced safeguard against malicious network impersonators.
For those using the deprecated Certificate (.pfx, .cert, .cer, .p12, .pem) entry, you may wish to import your certificate in a Certificate (X.509) entry instead.To do so, head to the deprecated entry, click Save document as, save the certificate as a .pfx file. Then, import it as per the steps below.
Add a new entry in Remote Desktop Manager.

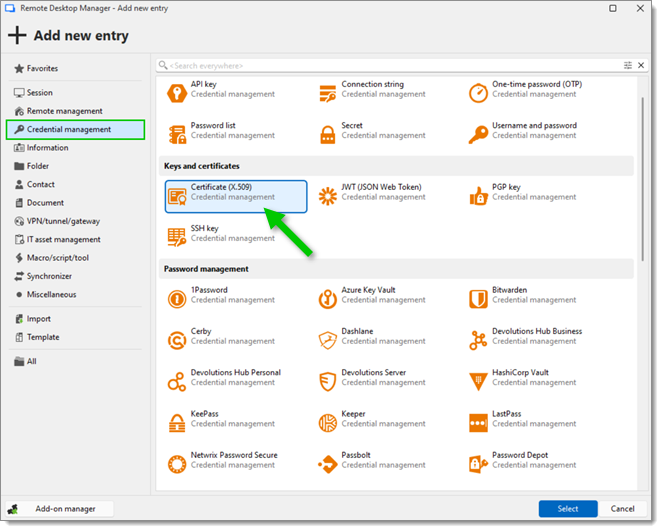

Go to Credential management, select Certificate (X.509), and click OK.
Enter a Name and select a Folder.

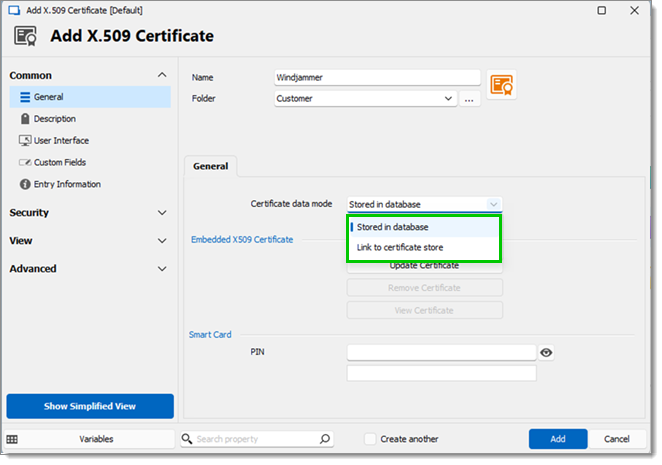

Under General, select Stored in database or Link to certificate store in the Certificate data mode drop-down menu.
Stored in database
Select Update certificate under General – Embedded X.509 certificate to import an X.509 certificate.
Choose the Certificate file and click Next.
Choose a Private key file if needed and click Next.
Click Finish to close the window.
Select View certificate to view certificate information and install the certificate.

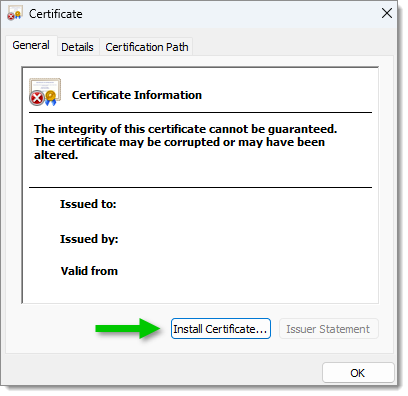

In the Certificate window, click Install certificate.

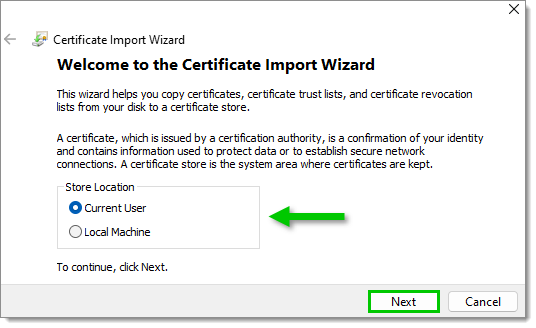

Select the Store Location: Current user or Local machine. Click Next.

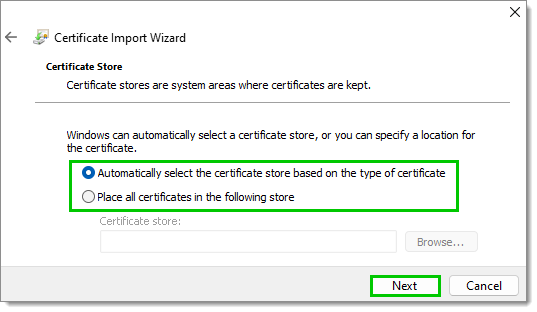

Choose the Certificate store. Click Next.

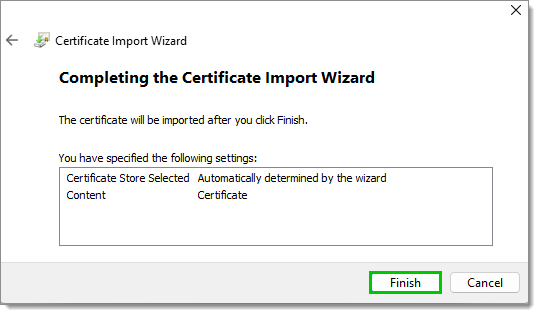

Click Finish to complete the import.
Select the PIN of the Smart card if needed. Click Add to save the entry.
Link to certificate store

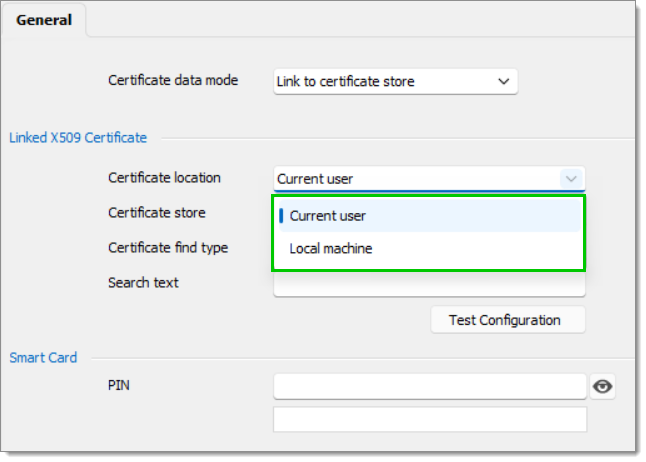

Select Current user or Local machine under Certificate location.

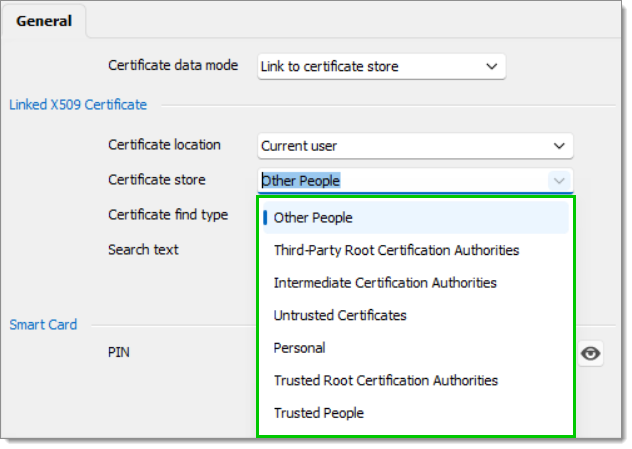

Choose the Certificate store in the drop-down menu.

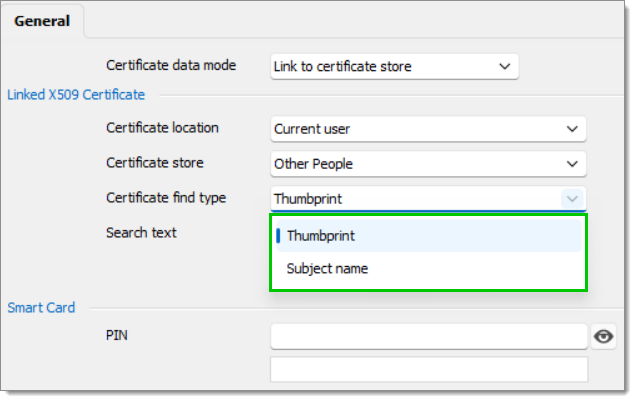

Choose Thumbprint or Subject name in Certificate find type.

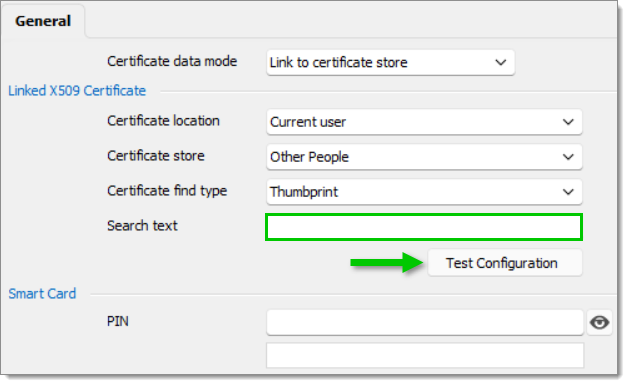

Enter the Search text. Click Test configuration.
Select the PIN of the Smart card if needed. Click Add to save the entry.
